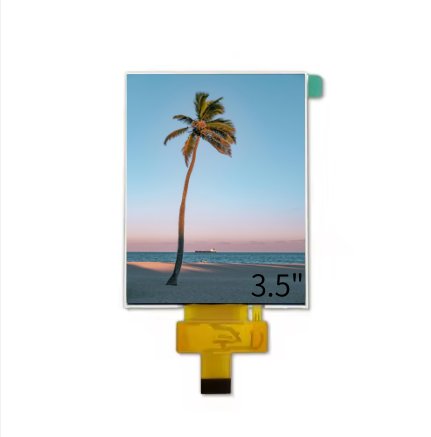

3.5 Inch TFT IPS LCD Display 320x480 Resolution Touch Screen Modules 300nits

Model Number : RHY035

Certification : ISO9001

Place of Origin : China

MOQ : 1000

Price : US $ 7.65

Payment Terms : T/T

Delivery Time : 31-35 work days

Packaging Details : 11.2*15.8*6.1(cm)

Name : TFT IPS LCD Display

LCD size : 3.5"

Outline Dimension : 60.75*108.71*10.29 mm

Display area : 48.96*73.44 mm

Number of Pixel : 320 * 480

Brightness : 300 cd/m²

Interface : TTL

Viewing Angle : IPS

Display mode : TFT

Operating Temperature : -20°C to +70°C

Storage Temperature : -30°C to +80°C

Contact Now

3.5 Inch 320x480 MCU TFT LCD Module 300 Nits

Key Features

Display Type: 3.5" TFT LCD
Brightness: 300 cd/m²
Interface: TTL
Viewing Angle: IPS

Technical Specifications

Display Size	3.5 inch
Dimensions	60.75108.7110.29 mm
Active Area	48.96*73.44 mm
Resolution	320 * 480 pixels
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Product Benefits

This 3.5-inch customized IPS TFT LCD module, boasting a resolution of 320*480 , is engineered with a relentless focus on premium quality. Leveraging advanced In-Plane Switching (IPS) technology, it offers an impressive 178° horizontal and vertical viewing angle, ensuring consistent color accuracy and contrast from virtually any perspective. The module's flexible customization capabilities extend to backlight intensity, touch panel integration, and interface protocols, allowing seamless adaptation to diverse industrial and consumer electronics requirements.

Built with high-grade materials and stringent manufacturing processes, this LCD module delivers stable performance under varying environmental conditions, with an operating temperature range spanning from -20°C to 70°C. Its low power consumption design, coupled with a long lifespan of over 50,000 hours, makes it an energy-efficient and durable solution. Whether for handheld medical devices, industrial control panels, or compact smart gadgets, this IPS TFT LCD module represents the pinnacle of high-definition display technology for high-end small form-factor devices.
