Optically Bonded 5 inch 720x1280 TFT LCD Module with MIPI Interface for Enhanced Durability and Clarity

Model Number : RHY050

Certification : ISO9001

Place of Origin : China

MOQ : 1000

Price : US $ 14.12

Payment Terms : T/T

Delivery Time : 31-35 work days

Packaging Details : 11.7*17.1*5.2(cm)

LCD size : 5" TFT

Outline Dimension : 66.4* 120.05* 1.75 mm

Display area : 62.1* 110.4 mm

Viewing Angle : IPS

Brightness : 200 cd/m²

Number of Pixel : 720*1280

Interface : MIPI

Operating Temperature : -20°C to 70°C

Contact Now

Optically Bonded 5 inch 720x1280 TFT LCD Module with MIPI Interface

The Optically Bonded 5 inch 720x1280 TFT LCD Module with MIPI Interface represents a significant engineering advancement over standard air-gap displays, utilizing a precision-fill liquid optical adhesive to eliminate the microscopically thin air layer between the cover glass or touch panel and the LCD cell. This optical bonding process delivers transformative benefits for applications where display reliability and readability under adverse conditions are non‑negotiable - including outdoor kiosks, marine navigation systems, automotive instrument clusters, medical surgical displays, and industrial control panels exposed to moisture, vibration, or extreme temperatures. By removing the air gap, the module virtually eliminates internal reflections that normally wash out on‑screen content in bright ambient light, effectively doubling contrast ratio and improving sunlight readability without requiring higher backlight power. This means critical information such as diagnostic waveforms, navigation charts, or equipment status indicators remains clearly visible even under direct sunlight or high-glare environments. Furthermore, the optically bonded construction prevents condensation from forming between layers when the device moves between hot and cold environments - a common failure point in standard displays used in refrigerated warehouses, outdoor field equipment, or vehicle dashboards. The adhesive also acts as a structural reinforcement, increasing impact resistance and reducing the risk of delamination or damage from mechanical shock and vibration, making the module suitable for handheld devices that are frequently dropped or mounted on heavy machinery. Underpinning this rugged optical stack is a 5‑inch TFT panel with 720*1280 HD resolution (approximately 294 PPI), delivering sharp text, fine details, and smooth graphics suitable for applications ranging from portable medical monitors to drone ground control stations. The MIPI DSI interface provides a high‑speed, low‑pin‑count serial connection that reduces cable bulk and electromagnetic interference, while consuming minimal power - an essential feature for battery‑powered devices requiring long operational shifts. While the product name specifies TFT, the panel typically incorporates IPS (In‑Plane Switching) technology, offering wide viewing angles of up to 80 degrees in all directions, ensuring consistent color and contrast even when viewed from off‑center positions - a frequent scenario in vehicle dashboards or shared workstations. The 5‑inch form factor balances portability with usable screen area, offering enough real estate for detailed user interfaces, data dashboards, or video feeds while remaining compact enough for handheld enclosures. Optical bonding also improves touch accuracy when a capacitive touch panel is integrated, as the elimination of parallax ensures that what the user sees is exactly where the touch sensor detects the input - critical for precise UI interactions. Industrial‑grade materials and construction allow the module to operate across a wide temperature range, typically -20°C to +70°C, with the bonded construction resisting delamination under thermal cycling. Whether deployed in a ruggedized tablet for field service, a patient monitoring device in an operating room, a GPS display on a boat, or a factory floor HMI terminal, this optically bonded 5‑inch MIPI TFT LCD module delivers superior sunlight readability, structural integrity, and environmental protection - reducing warranty claims, improving user satisfaction, and ensuring that critical information remains visible when and where it matters most.

Technical Specifications

Specification	Details
LCD Size	5" TFT
Outline Dimension	66.4 * 120.05 * 1.75 mm
Display Area	62.1 * 110.4 mm
Number of Pixels	720 * 1280
Brightness	200 cd/m²
Interface	MIPI
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Key Features

Glove-compatible capacitive touch technology
High-resolution 720*1280 IPS display
MIPI DSI interface for low-power operation
Wide viewing angles up to 80 degrees
Industrial-grade temperature range operation
Anti-glare and anti-fingerprint coating options
Compact 5-inch form factor for portable devices

Product Images

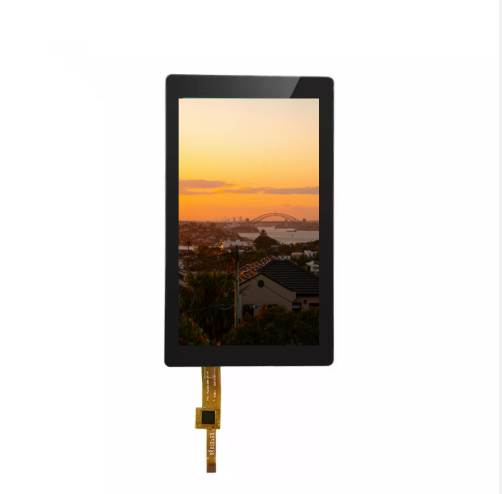

Optically Bonded 5 inch 720x1280 TFT LCD Module with MIPI Interface for Enhanced Durability and Clarity

Front view showing display quality and pixel detail

Side view showing slim profile and connector interface

Optically Bonded 5 inch 720x1280 TFT LCD Module with MIPI Interface for Enhanced Durability and Clarity Images
